Tandem disc harrow X-form DSB
Не e наличен
Направи запитване
Петя Мирчева е мениджър продажби с богат опит, на когото клиентите могат да се доверят. С фокус върху изграждането на дългосрочни партньорства и разбиране на уникалните нужди на всеки клиент, Петя гарантира професионално обслужване и максимални резултати във всяко взаимодействие.

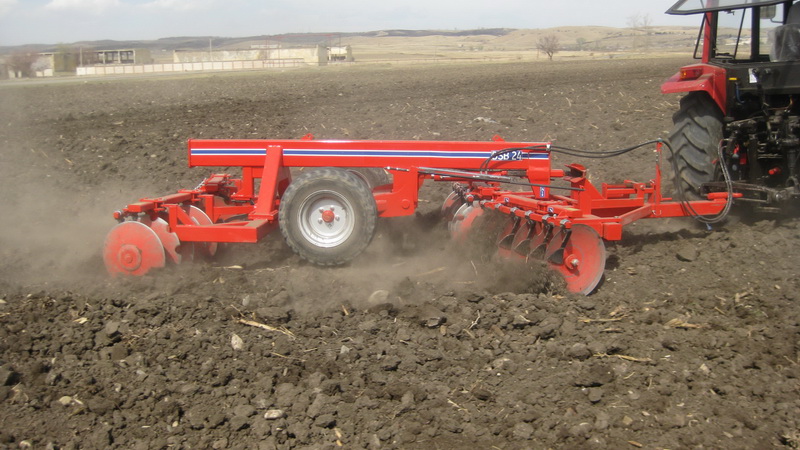

DSA trailed disc harrows are the heaviest of all DS* series. The main frame is made of a single beam 250x150mm and for up to 180Hp tractors. 28 to 40 discs, Ø610mm in diameter, which work in X-form. DSA offer great visibility during work and easy excess to all maintenance points. The attack angle of the front disc gangs can be adjusted independently from the attack angle of the rear disc gangs. The attach angle of the discs is manually adjustable, but a hydraulically controlled disc gang angle setting is also available (as an optional extra). DSA series are standard fitted with a hydraulic lifting system for easy maneuvering and for road transport.
- Trailed construction, disc gangs work in X form
- Main frame comprised of a single beam 250×120 mm
- 28, 32, 36 or 40 heavy duty discs, Ø610
- Inter disc spacing of 220 mm
- Manually adjustable disc gang’s angle of attack
- Hydraulic lifting system for maneuvering and transport
- High load capacity bearing
- 35×35 disc axle
- Individually adjustable disc scrapers
